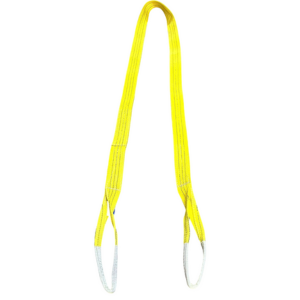

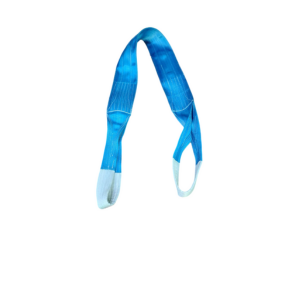

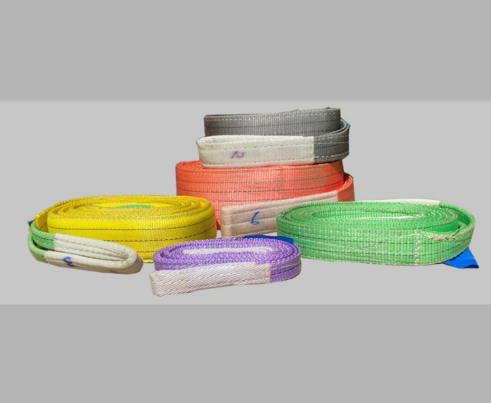

Polyester Webbing Slings

Polyester Webbing Slings

The flat webbing lifting slings are made from high tenacity polyester webbing; which are colour coded as per International standards for ease of identification for lifting and is manufactured from high tenacity yarn. Douplex webbing sling is made by teaching two layers of webbing sling and Triplex webbing slings are manufactured from triple layers of webbing, while Quadruplex webbing slings made from four layers of webbing, either terminated in a metal end hook fitting or, more popularly sewn back folded with a high tenacity Polyester fabric to form a reinforced Eye, which provides greater durability to the eye/loop . These flat webbing lifting slings are most popular type and suitable for general & heavy industrial lifting, where high working load is required with light weight webbing slings, The slings are as strong as steel yet they are light weight and offer reduced risk of injury to manpower or damage the surface of the material. In order to protect the webbing from unnecessary wear and tear, coverings/sleeves are available, in any length which protect both the sling and the material.

Features:-

  • - Available in flat webbing type and endless type
  • - Safety factor 7:1
  • - Broad & flat load bearing surface for better grip over smooth & fragile loads
  • - Reduced risk of abrasion and more life of sling due to greater thickness
  • - High strength to weight ratio
  • - Colour coded for identification as per International Standards
  • - Anti-abrasion sleeves (optional)

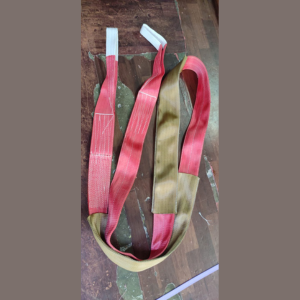

Polyester webbing Sling For coil lifting

The flat webbing lifting slings are made from high tenacity polyester webbing; which are colour coded as per International standards for ease of identification for lifting and is manufactured from high tenacity yarn. Douplex webbing sling is made by teaching two layers of webbing sling and Triplex webbing slings are manufactured from triple layers of webbing, while Quadruplex webbing slings made from four layers of webbing, either terminated in a metal end hook fitting or, more popularly sewn back folded with a high tenacity Polyester fabric to form a reinforced Eye, which provides greater durability to the eye/loop . These flat webbing lifting slings are most popular type and suitable for general & heavy industrial lifting, where high working load is required with light weight webbing slings. The special type of sling is specially equipped with anti abbresive sleeve to protect the sharp edge of the coils from cutting or damaging the webbing belt, which give the belt a long self live and longevity .

Features:-

  • - Available in flat webbing type and endless type
  • - Safety factor 7:1
  • - Broad & flat load bearing surface for better grip over smooth & fragile loads
  • - Reduced risk of abrasion and more life of sling due to greater thickness
  • - High strength to weight ratio
  • - Colour coded for identification as per International Standards
  • - Anti-abrasion sleeves

Polyester Round Sling

Polyester Round slings are an all-purpose lifting sling enabling strong and non-damaging lift to the load. Round slings are a continuous loop made from polyester yarn encased in a sleeve of polyester fabric. The sleeve is constructed, so that it protects the internal rows of yarn filament. Round Slings offer the user the ultimate in lifting security and rigging ease. They are constructed from a continuous loop of 100% polyester fiber.
Each made Round Sling is covered with a polyester woven jacket to protect the load-bearing fibers from damage. Because the load-bearing fibers never come in contact with the load, they are protected from cuts, abrasions and ultraviolet degradation. Each sling has a tough, resilient tag for quick and easy identification. Round Slings are made of polyester yarn and covered with a protective sleeve. The Slenderness of these slings in heavy-duty slinging-suiting the small hook admirable. Round Slings have a high strength to weight ratio, which provides an extremely flexible and light weight lifting sling with low elongation. They are made by 100% high tenacity polyester yarn. Endless round polyester slings are made of high tenacity polyester fiber yarns ,which are wound continuously together in the form of the endless sling. The yarn core is protected by a woven tubular sleeve which is made of polyester and has a better abrasive resistant. This upper cover protect load bearing yarns from abrasion and ultraviolet degradation. Round slings are easy to handle soft and light in weight yet have a high breaking strength.

Features of Endless round sling :-

  • - Made of Polyester Yarn Core with Upper Polyester Cover.
  • - Soft and Light Weight Hence Easy to Handle.
  • - Safety Factor 7:1.
  • - High Strength to Weight Ratio.
  • - Best to lift Smooth, Polished and Coated Loads.
  • - Color coded for easy identification
  • - Custom made lifting solutions for non-standard applications
  • - Available with a choice of wear sleeves for added protection at the load points Hardware end fittings optional

Polyester Multilegs Sling

Multileg Polyester slings are made of using Flat Webbing Slings or Endless type round slings as per specific requirements depending upon uses and safe working loads as per requirement . A set of multi leg slings includes Master link, Auxiliary links and different end fittings like Eye hooks, Swivel hooks, D-Shackles or Bow- Shackles as required by the user . Flat slings are stitched directly to the metal ring while Endless round slings are attached with connecting links. Anti-abrasive and Anti-cutting protection sleeves can be fitted as per specific requirements.

Features of Endless round sling :-

  • - SELECTION OF FLAT WEBBING OR ROUND SLINGS
  • - CHOICE between 2 LEG, 3 LEG AND 4 LEG TYPES
  • - AVAILABLE IN CUSTOMISED LENGTHS
  • - HIGH STRENGTH
  • - COLOUR CODED FOR IDENTIFICATION
  • - DIFFERENT END FITTINGS AVAILABLE
  • - END FITTING METAL COMPONENTS FORGED ALLOY STEEL
  • - ANTI-ABRASION SLEEVES for PROTECTION.


ADVANTAGE:-

  • - Better load control and balance.
  • - Bridle slings give fixed lifting points and choice of multiple legs.
  • - Hardwares avoid wearing & cuts of slings at load bearing points.

Polyester Bag sling

The Polyester Bag Slings offered in various shapes and sizes, have various lifting capacities. Renowned for reliability and non-corrosive nature, these Polyester Bag Slings can be custom designed as per the client’s specific requirements. Zola type bag slings used where wider load bearing surface is required and lowering belts used in pipe line projects. These special slings are manufactured from premium quality raw materials. These belts are wide up to 36” and can be made up to 100 Tons capacity of any length required. These belts are strongly bonded and strengthened for lifting. These slings can be polyurethane impregnated or vinyl coated for extra strength and abrasive resistance.

ADVANTAGE :-

Higher load carrying capacity than web slings, with a wider contact area. These sling bags offer the best support for sensitive loads like Cylinders etc. Available in standard width up to 900 mm
