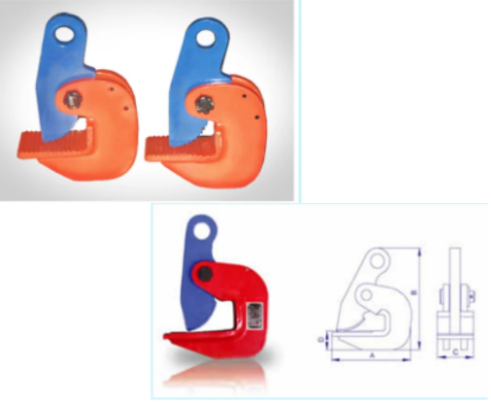

Horizontal Lifting Clamps-
Using For Lifting Steel Plate Levelly
Wll Refers To The Hanging Clamp When Used In Pairs To Allow Lifting Of The Maximum Load.
Please Add Balance Beam When The Steel Plate Is More Longen
The Proof Load Is 2 Times Working Load Limit, The Breaking Load Is 4 Times Working Load Limit.
Please Read The Product Specification Carefully Before Using It.
Vertical Lifting Clamps
Vertical Lifting Clamp-
Using for lifting steel vertical.
Only a single hoisting operation or using of two complementary, only a single vertical clamp lifting weights is the largest rated load. Lifting must be locking up the handle so that the spring tension; unloading when the locking handle down, relax spring, and clamp plate can bu separated. The vertical lifting clamp of dsq1, dsq2, dsq3 and dsq5, the proof load is 2 times working load limit, the breaking load is 4 times working load limit. The vertical lifting clamp of dsq8dsq12ã€dsq16, the proof load is 1.5 times working load limit, the breaking load is 3 times working load limit. Please read the product specification carefully before using it.
