Round Slings / Endless Slings



Rabi Industries Manufacturer and suppliers of Round Slings / Endless Slings.

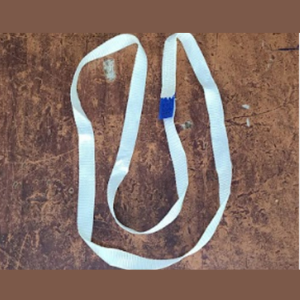

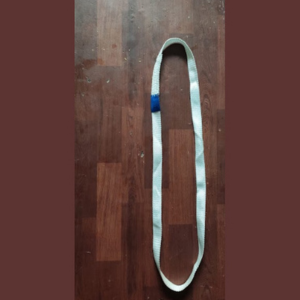

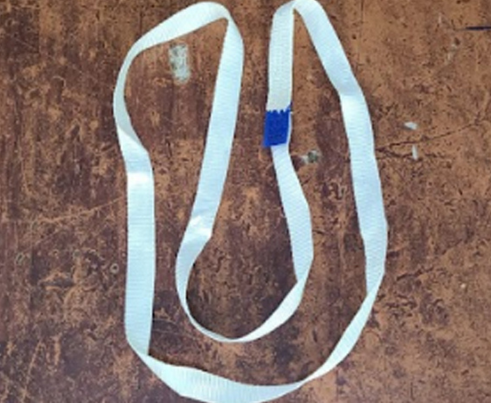

Round Slings offer the user the ultimate in lifting security and rigging ease. They are constructed from a continuous loop of 100% polyester fiber.

Each Round Sling is covered with a polyester woven jacket to protect the load-bearing fibers from damage. Because the load-bearing fibers never come in contact with the load, they are protected from cuts, abrasions and ultraviolet degradation. Each sling has a tough, resilient tag for quick and easy identification. Round Slings are made of polyester yarn and covered with a protective sleeve. The Slenderness of these slings in heavy-duty slinging-suiting the small hook admirable. Round Slings have a high strength to weight ratio, which provides an extremely flexible and light weight lifting sling with low elongation. They are made by 100% high tenacity polyester yarn confirming the standards similar to ISO 4878. These Round Slings are resistant to mild acid, dry cleaning solvents, soap and detergent.

ADVANTAGES :
Reduce cost with less total rigging weight.
Easy handling and storage.
Reduce risk of back and hand injuries.
Cover abrasion will not reduce capacity.
Provides a strong grip on loads.
Provides a tighter choke with an easier release
Capacities are color coded.


  ROUND SLINGS ( 1 Ton --- 200 Ton )



Vertical
Straight lift


Colour

     Width

Choker

Basket

Basket 45°

Basket 90°

Code No
    1 TON VIOLET 32 mm     800 kg 2000 kg 1800 kg 1400 kg R-24815
    2 TON GREEN 32 mm   1600 kg 4000 kg 3600 kg 2800 kg R-24816
    3 TON YELLOW 35 mm   2400 kg 6000 kg 5400 kg 4200 kg R-24817
    4 TON GREY 35 mm   3200 kg 8000 kg 7200 kg 5600 kg R-24818
    5 TON RED 48 mm   4000 kg 10000 kg 9000 kg 7000 kg R-24819
    6 TON BROWN 48 mm   4800 kg 12000 kg 10800 kg 8400 kg R-24820
    8 TON BLUE 48 mm   6400 kg 16000 kg 14400 kg 11200 kg R-24821
  10 TON ORANGE 48 mm   8000 kg 20000kg 18000 kg 14000 kg R-24822
  12 TON ORANGE 80 mm   9600 kg 24000 kg 21600 kg 16800 kg R-24823
  15 TON ORANGE 80 mm 12000 kg 30000 kg 27000 kg 21000 kg R-24824
  20 TON ORANGE 80 mm 16000 kg 40000 kg 36000 kg 28000 kg R-24825
  30 TON ORANGE 96 mm 24000 kg 60000 kg 54000 kg 42000 kg R-24826
  50 TON ORANGE 120 mm 40000 kg 100000 kg 90000 kg 70000 kg R-24827
  60 TON ORANGE 125 mm 48000 kg 120000 kg 108000 kg 84000 kg R-24827A
  75 TON ORANGE 130 mm 60000 kg 150000 kg 135000 kg 105000 kg R-24827B
100 TON ORANGE 150 mm 80000 kg 200000 kg 180000 kg 140000 kg R-24827C
125 TON ORANGE 170 mm 100000 kg 250000 kg 225000 kg 175000 kg R-24827D
150 TON ORANGE 180 mm 120000 kg 300000 kg 270000 kg 210000 kg R-24827E
200 TON ORANGE 200 mm 160000 kg 400000 kg 360000 kg 280000 kg R-24827F

Application :

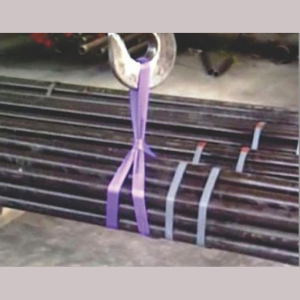

ROUND SLINGS are made of polyester yarn and covered with a protective sleeve. The Slenderness of these slings in heavy-duty slinging-suiting the small hook admirable.
Use Of ROUND SLINGS
